Security Technical Implementation Guides (STIG)

Minimus offers hardened images following STIG guidelines for enhanced security. STIGs are Security Technical Implementation Guides published by the Defense Information Systems Agency (DISA). You can filter for STIG compliant containers in the Minimus gallery.

Verify Security Content Automation Protocol (SCAP)

OpenSCAP tools are the recommended toolset for validating the configuration of container images and reviewing the configuration of an image file system. For ease of use, Minimus provides a hardened OpenSCAP image that always includes the most up-to-date package version for all of the included packages and dependencies. Use the Minimus OpenSCAP image to scan your Docker images and containers without the need to install OpenSCAP locally. This image comes preloaded with a Minimus STIG file for security and compliance assessments.

How to verify STIG compliance for Minimus images

To test the Minimus OpenSCAP image, follow the steps below to scan an image using its file system.

Docker runtime is required as a pre-requisite for running the Minimus OpenSCAP docker image.

Download OpenSCAP from Minimus

Pull the OpenSCAP latest image from the Minimus registry:

docker pull reg.mini.dev/openscap:latest

Download the Data Stream file

The data stream module (ds) is provided by Minimus and used to automatically validate the image or container. Download the file ssg-minimus-gpos-ds.xml from the Minimus public GitHub repo.To pull the file locally:

curl -O https://raw.githubusercontent.com/minimusio/examples/main/STIG/ssg-minimus-gpos-ds.xml

wget -O ssg-minimus-gpos-ds.xml https://raw.githubusercontent.com/minimusio/examples/main/STIG/ssg-minimus-gpos-ds.xml

For good measure, verify the file:

docker run --user root \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -v "$PWD/ssg-minimus-gpos-ds.xml:/ssg-minimus-gpos-ds.xml:ro" \
  --entrypoint "" \
  reg.mini.dev/openscap \
  /usr/bin/oscap info ssg-minimus-gpos-ds.xml

You should see a printout of file details, beginning with Document type: Source Data Stream and version information.

Create a directory for the scan results

mkdir -p "$PWD/openscap_results"

Change the directory ownership to match the container’s UID to grant the OpenSCAP container write access:

sudo chown 1000:1000 "$PWD/openscap_results"

Pull the image to be scanned

Pull the image you plan to scan from the Minimus registry, for example:

docker pull reg.mini.dev/nginx-fips:latest

Run the OpenSCAP scan

Use the oscap-docker tool to perform offline scanning from the Minimus provided image:

docker run --user root \
  -v "$PWD/ssg-minimus-gpos-ds.xml:/ssg-minimus-gpos-ds.xml:ro" \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -v "$PWD/openscap_results:/output" \
  --entrypoint "" \
  reg.mini.dev/openscap \
  /usr/bin/oscap-docker image reg.mini.dev/nginx-fips:latest -- \
    xccdf eval \
    --profile "xccdf_basic_profile_.check" \
    --results /output/scan-results.xml \
    --report  /output/report.html \
    /ssg-minimus-gpos-ds.xml

docker run --user root \
  -v "$PWD/ssg-minimus-gpos-ds.xml:/ssg-minimus-gpos-ds.xml:ro" \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -v "$PWD/openscap_results:/output" \
  --entrypoint "" \
  reg.mini.dev/openscap \
  /usr/bin/oscap-docker image {IMAGE_TO_SCAN} -- \
    xccdf eval \
    --profile "xccdf_basic_profile_.check" \
    --results {path to scan results in XML} \
    --report {path to scan results in HTML} \
{path to data stream file}

--results indicates where to place the XML formatted report
--report indicates where to place the HTML report
The data stream location points to the location of the SCAP source data stream file

Interpret your results

The test outputs two files: An XML report and an HTML page. You can use either to review your results.

XCCDF Format

The eXtensible Configuration Checklist Description Format is part of the SCAP standard. OpenSCAP tooling uses XCCDF to automate compliance and configuration remediation. XCCDF STIG reports can be viewed in dedicated viewing tools endorsed by the DoD. Currently, STIG Viewer 3 is the most up to date. The relevant style sheet is bundled with the STIG. (Link to download the STIG Viewer.)

Convert DISA STIG XML to other formats

You can convert DISA STIG XML reports into other formats, as required, using a popular open-source tool from MITRE. This tutorial showcases examples using the heimdall-lite utility made available by the MITRE Security Automation Framework (SAF). This guide explains how to run the utility as a container in order to convert a DISA STIG XML report provided by Minimus into other common formats, including JSON, CSV, HTML, DISA Checklist, etc. MITRE Heimdall (https://github.com/mitre/heimdall2) is a suite of tools that provide a centralized visualization and reporting solution for automated security scan results.

Pre-requisites

Scan results obtained in XML format by running the Minimus OpenSCAP image. See the quick start guide
Container runtime environment (such as Podman or Docker)
Ability to pull in the heimdall-lite docker image to its execution location
The heimdall-lite docker image currently ships for amd64 images only. If needed, you can use emulation as a workaround for other architectures such as macOS Darwin.

Run Heimdall Lite locally on macOS

Install Heimdall-Lite prerequisites

Since Heimdall Lite only ships in amd64 formats, the container image will either need to run on an x86 architecture or be passed through an emulator.This can be achieved on macOS Darwin by installing an emulator to pass through this image with an option such as qemu. qemu may be installed locally with Homebrew:

brew install qemu

Pull the container image locally

docker pull docker.io/mitre/heimdall-lite:release-latest --platform linux/amd64

Note - this pull will fail locally on Darwin if the platform flag is not included.

Run the image locally

docker run --platform=linux/amd64 -d -p 8080:80 mitre/heimdall-lite:release-latest

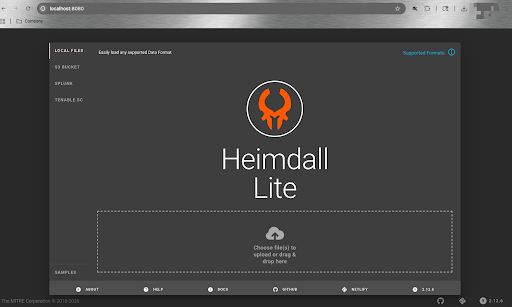

Connect to the running heimdall application

Open your local web browser to point at localhost:8080 (This example assumes you bound port 8080 but you should use the port you bound in the run command).

Upload XML file from OpenSCAP

Select Choose files to upload and select your XML file (that is the report generated using OpenSCAP).

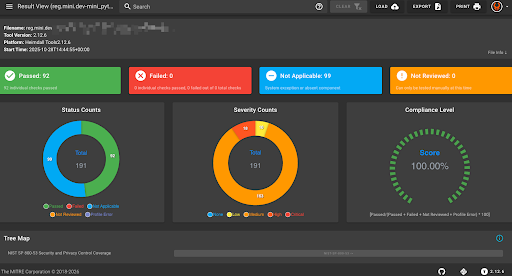

You will see the same matching checks previously noted from running OpenSCAP.

Select an export format

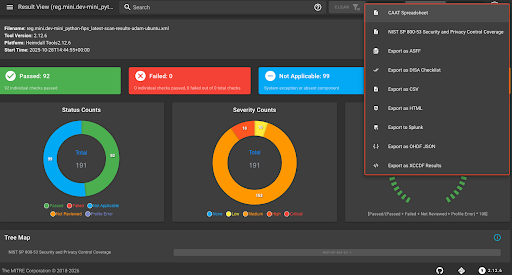

You will now be able to export the report into various formats as desired by selecting the Export button at the top right.

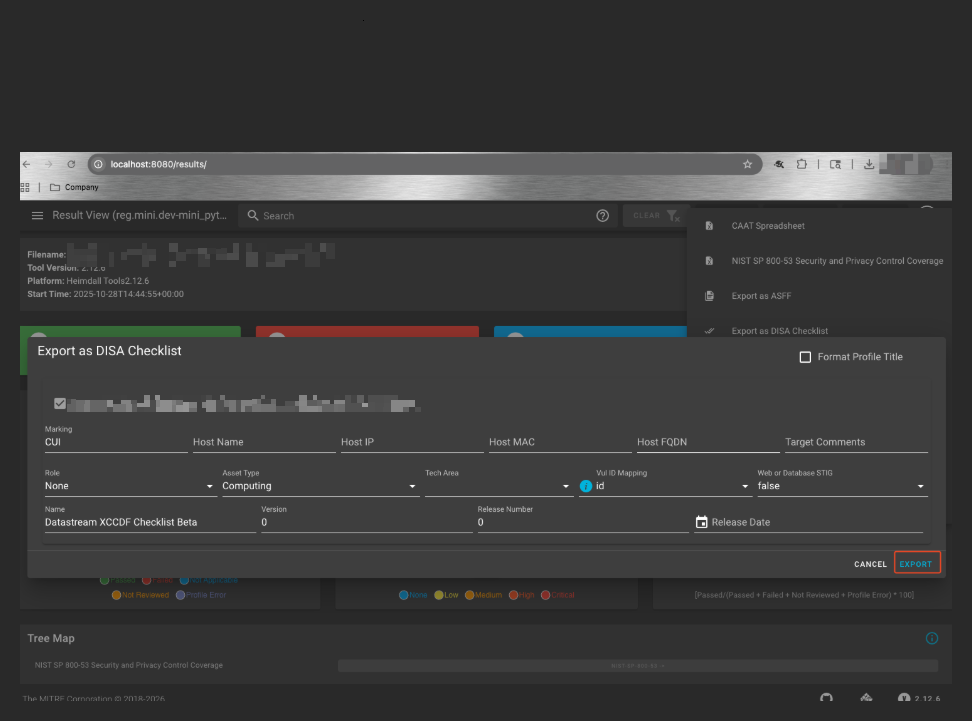

You can use the above process to export the report as a DISA checklist and download it locally. To do so, select the option Export as a DISA Checklist. You can download the resulting file when prompted.

Heimdall Local Export Darwinchecks4 — Export as a DISA checklist using Heimdall Lite

Run Heimdall Lite on a Cloud VM

This example showcases running Heimdall Lite on a GCP VM but the concept is the same for other cloud providers.

Create a VM in your target cloud environment

Create a VM with Docker or Podman installed to execute the runtime of a container image that is x86-64 or amd64 based.

Pull the Heimdall Lite image

docker pull docker.io/mitre/heimdall-lite:release-latest

Run the container image

docker run -d -p 8080:80 mitre/heimdall-lite:release-latest

Create an SSH tunnel to the VM

To run the browser locally, you must now create an SSH tunnel to the instance and map it to the respective port the container is listening on. This can be done by using the Google Cloud CLI (gcloud CLI) and then authenticating to your respective project where the VM is running.

Authenticate to your GCP project via CLI:

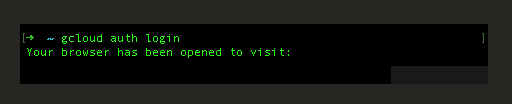

gcloud auth login

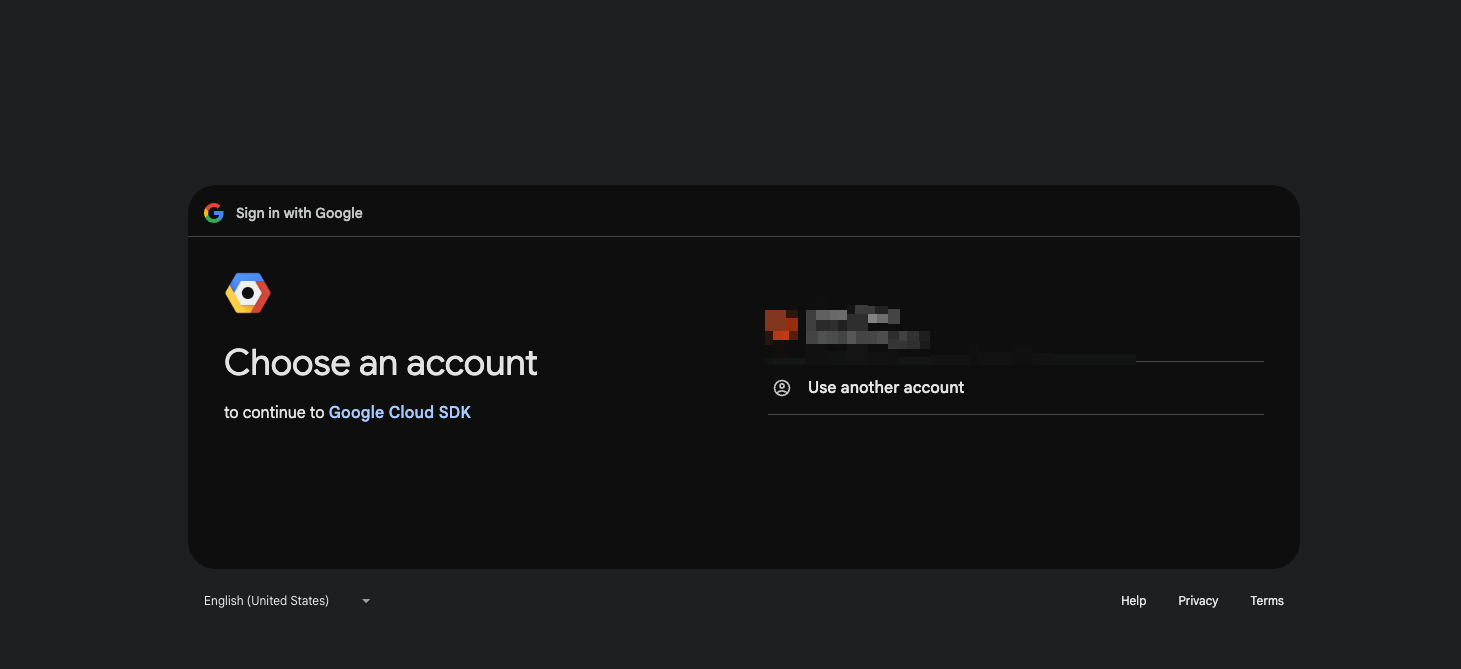

Authenticate via web browser: You may need to allow permissions from GCP. If successful, you will see the same success message in your local terminal: Your browser has been opened to visit.
Create your SSH tunnel using gcloud:
gcloud compute ssh [VM_NAME] --project=[PROJECT_ID] --zone=[ZONE] -- -N -L [LOCAL_PORT]:localhost:[REMOTE_PORT]
You will need to update the command with the following:
- LOCAL_PORT - Use the port you enter in your local browser on your machine
- REMOTE_PORT - Use the port the Heimdall Lite container is bound to listen on in the cloud VM.
If run for the first time, you may be prompted to generate SSH keys locally. When successful, you will have an active process with this open tunnel and the cursor will be active.
Example showing SSH keys that were generated locally

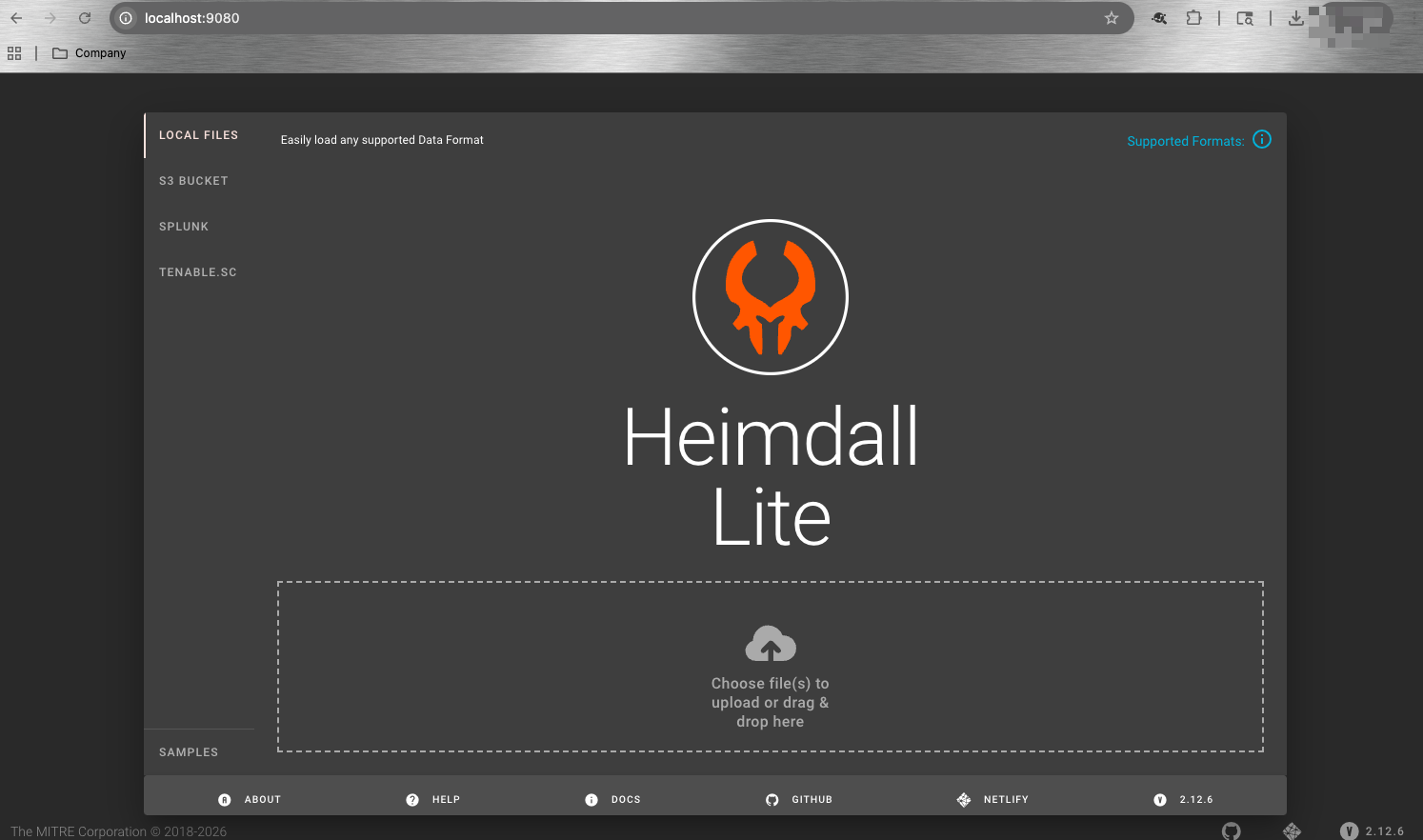

Access the Heimdall Lite container from your local browser

Access the Heimdall Lite container from your local browser by typing in localhost:LOCAL_PORT, for example, localhost:9080.

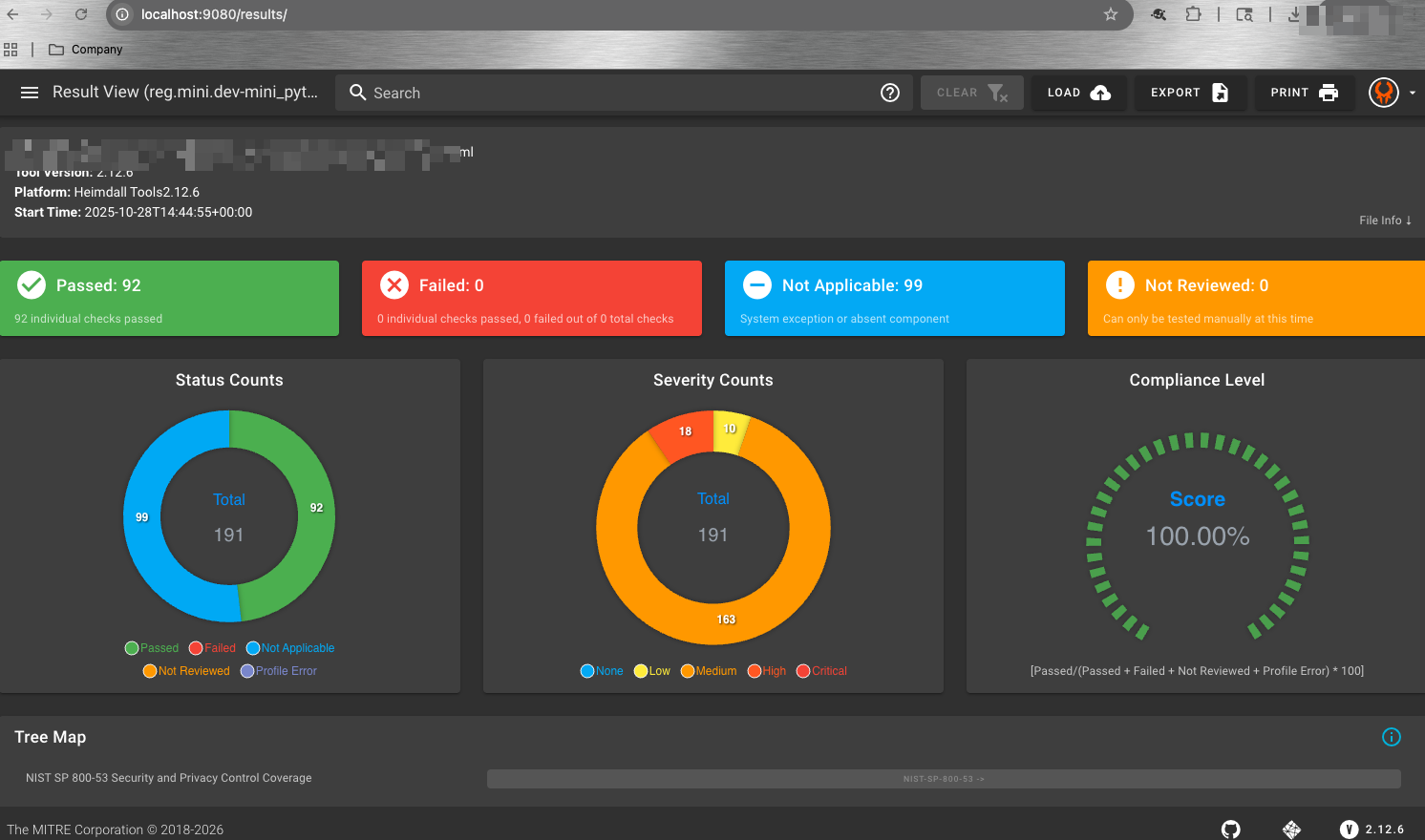

Upload your XML report into Heimdall

Export your report to another format

Use the Export button on the top right to export your report to your format of choice.
